Brand：450S
Other Data：

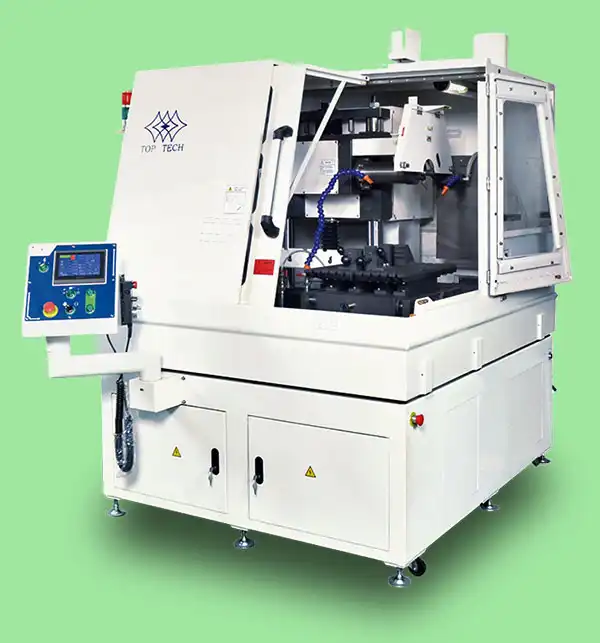

CF450S is a large metallographic cutting machine that incorporates the feeding and vertical cutting mode. With a max. cutting capacity of Ø150mm, CF450S is specifically designed for cutting medium large metal material, such as steel, iron, titanium, copper, aluminum, ceramic, motor, crankshaft, gear, and turbine.
1. Laser alignment function.
2. Spacious cutting chamber.
3. Supports vertical cutting and suitable for long workpieces.
4. Built-in safety device to protect the operator.
5. LCD touch screen for easy operation.
6. Mobile filtration water tank separates and filters metal chips.
7. Step cutting mode for special workpieces (optional).
8. Durable structure with T-type stainless steel vise table.
9. Worktable accommodates various sample sizes.
|
Model |
450S |
|
|---|---|---|
|
Cutting Stroke |
Y:450mm |
Z:250mm |
|
Motor Power |
15HP (12000W) |
|
|
Cutting Capacity |
Max. Ø150 mm |
|
|
Cut-off Wheel (Diameter x Bore) |
Max. Ø508 x Ø31.75( Ø32 ) mm |
|
|
Flange Diameter |
Ø85、Ø100、Ø120、Ø140 mm |
|
|
Feed Method (Automatic) |
Button start, auto return after cutting completion |
|
|
Spindle Speed |
2100RPM(60Hz) / 1650RPM(50Hz) |
|
|
T-slot Table Size |
500x450 mm |
|
|
Vise Capacity (W x H) |
50x85 mm |
|
|
Cutting Mode |
Horizontal cutting system & Vertical cutting system (Optional) Step cutting system |
|
|
Traverse Stroke |
40 mm |
|
|
Others |
Laser alignment device |
|
|
Coolant Pump |
1/4 HP |
|
|
Machine Dimensions (W x L x H) |
1750x2200x2100 mm |
|
|
Power Supply |
AC 220V/380V /415V/440V three-phase (custom voltage available) |
|
|
Standard Accessories |
2 wheel wrenches, 2 cut-off wheels |
|
|
Cutting fluid 6L |
||
