Brand：CF100/CF120/CF150/CF200
Other Data：

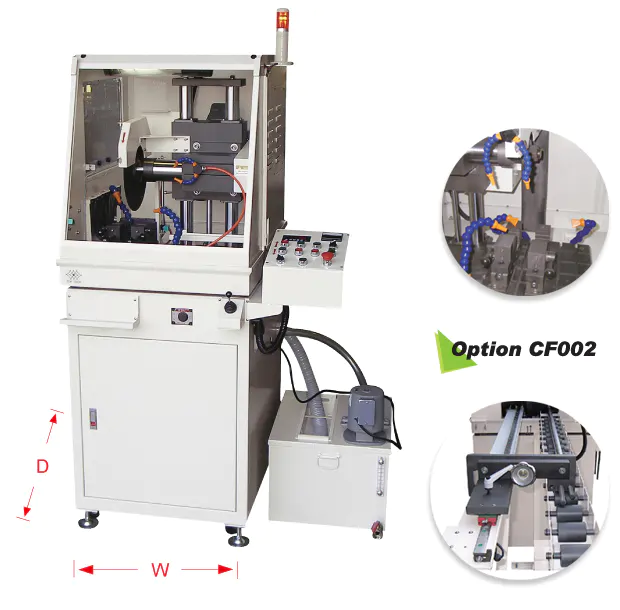

CF100 series are floor-standing metallographic cutting machines that incorporate the vertical cutting mode. With a max. cutting capacity of Ø90mm, CF100 series are specifically designed for cutting medium large or long metal material, such as steel, iron, titanium, copper, aluminum, ceramic, motor, crankshaft, gear, and turbine.
Precision Cutting MachineSeries
Model NO. 100/120/150/200
1. Hydraulic spindle feed cutting ensures stable speed.
2. Vertical up-and-down cutting, suitable for long workpieces.

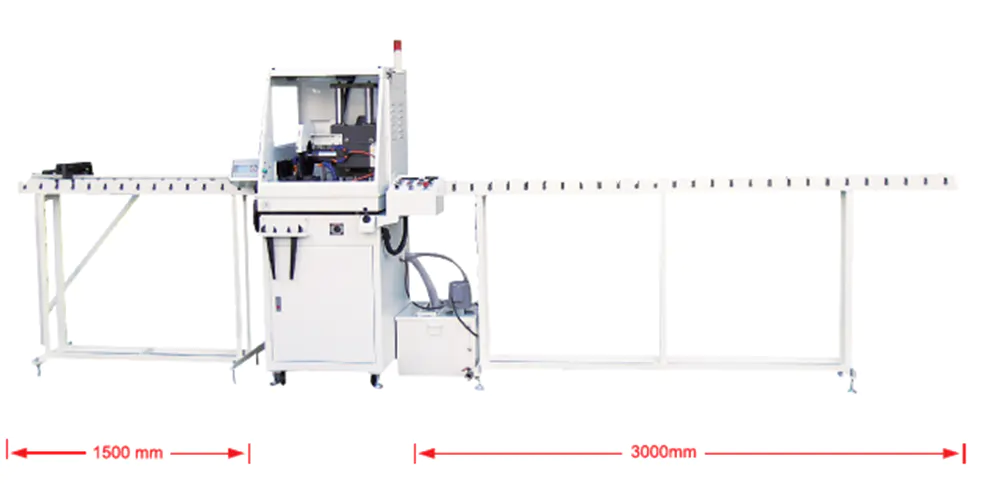

3. Support stand for long workpieces; custom design available.
|
Model |
CF100 |
CF120 |
CF150 |
|---|---|---|---|
|
Cutting Stroke |
100 |
120 |
150 |
|
Motor Power |
2HP (1500W) |
3HP (2300W) |
5HP (3800W) |
|
Cutting Capacity(mm) |
Max. Ø50 |
Max. Ø70 |
Max. Ø90 |
|
Cut-off Wheel (DiameterxBore) |
Ø255 x Ø31.75 |
Ø305 x Ø31.75 |
Ø355 x Ø31.75 |
|
Flange Diameter(mm) |
Ø85 |
Ø85 |
Ø85＆ Ø100 |
|
Feed Method (Automatic) |
Automatic button start, auto return after cutting completion |
||
|
Spindle Speed |
3000RPM(60Hz) 2500RPM(50Hz) |
2100RPM(60Hz) 1650RPM(50Hz) |
2100RPM(60Hz) 1650RPM(50Hz) |
|
T-slot Table Size(mm) |
275x300 |
275x300 |
275x300 |
|
Vise Capacity (WxH) |
50x60 mm |
50x60 mm |
50x60 mm |
|
Coolant Pump |
1/4 HP |
1/4 HP |
1/4 HP |
|
Tank Capacity |
100L |
100L |
100L |
|
Machine Dimensions (WxLxH) |
1750(1800)x1510x2000 |
1750(1800)x1510x2000 |
1750(1800)x1510x2000 |
|
Power Supply |
AC 220V/380V /415V/440V three-phase (custom voltage available) |
||
|
Standard Accessories |
2 wheel wrenches, 2 cut-off wheels |
||
|
Cutting fluid 5L |
Cutting fluid 5L |
Cutting fluid 5L |
|
