Brand：CLM35B
Other Data：
PRECISO-CL SERIES
MODEL NO. M35B

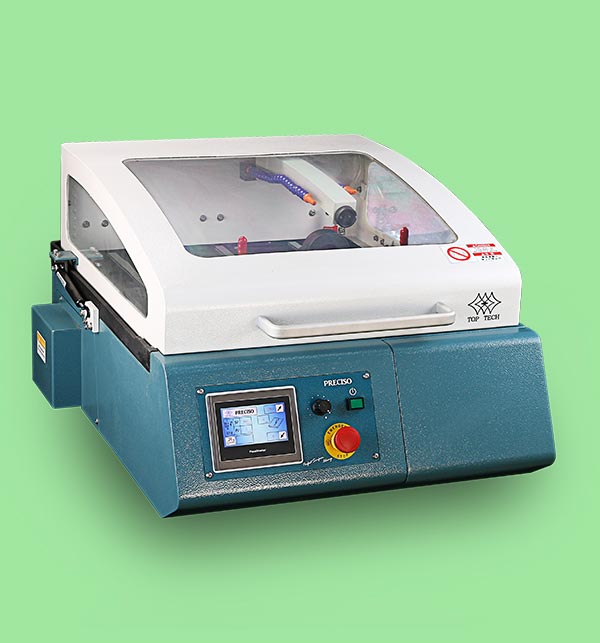

CLM35B is a benchtop precision diamond cutting machine widely used in metallographic sample preparation. It can be used with diamond blades featuring excellent hardness and wear resistance, greatly improving the efficiency of subsequent sample preparation processes.
It is suitable for testing requirements involving various plate-type materials, including carbon fiber boards, PCB boards, glass, and more. Whether used in the electronics industry, manufacturing industry, or other fields, it delivers efficient and precise cutting performance, providing high-quality samples for subsequent metallographic observation, tensile testing, and material analysis.
1. Protective cover, safety first.
2. Wide range plate suitable for various kinds of vise.
| Specification | CLM35B |
| Motor Power | 250W |
| Perforated Plate (mm) | 500 × 200 mm |
| Cut-off Blade | Max. Ø200 mm (8”) |
| Feeding Rate | 0 ~ 150 mm/min (Min: 25) |
| Feeding Method | Auto: Button control, automatic home return after cutting Manual: Button control |
| Rotational Speed | 0 ~ 2000 RPM |
| Horizontal Movement | 250 mm |
| Clamp Type | Quick vise |
| Cooling | 1/4 HP |
| Water Tank Capacity | 17 L |
| Machine Dimension (WxDxH) | 650 × 890 × 450 mm |
| Power Supply | 1Ø AC220V |
| Optional Vise | Special vise can be customized |
